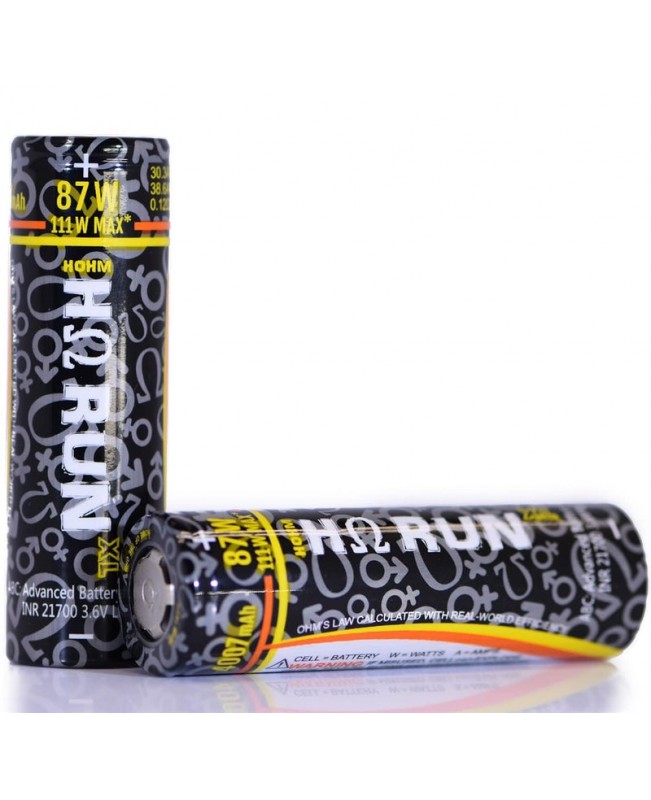

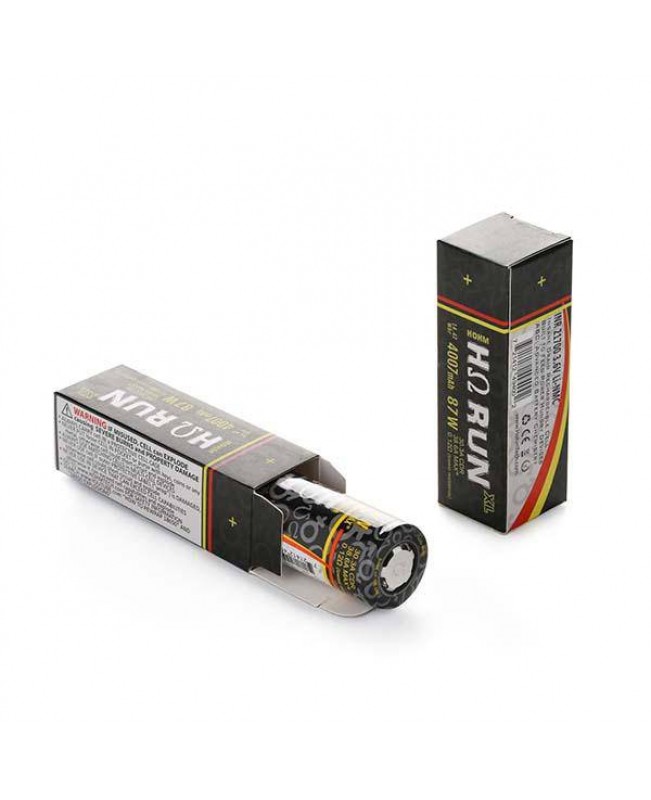

1 x Hohm Run XL 21700 Battery
Capacity: 4007mAh
Max Charge Rate: 6.01A
Max Charge Voltage: 4.2V
Continuous Discharge Rate: 30.3A
Max 80oC | 3.2V cut-off: 38.6A
Pulse | Peak6: 44.1A
Approximate Cycle Life Retention: 500 Cycles (72%), 1000 (62%)
Chemistry Type: QSP Li-NMC
Taking an already solid foundation, Hohm Tech Int’l has pushed further making the best of the best even better. Now utilizing proprietary structure, top cap, and chemistry (QSP Li-NMC), we can confidently say RUN XL is king of the 21700 game in every way imaginable.
Idea was to power only electric motor applications with the 21700, but found it too good to not share with the world. To prepare this cell to meet the extreme safety standards we hold ourselves accountable to, it took over 2 years of R&D on just the Cobalt Oxide ratio and Graphite stripping process.
The RUN XL 21700 will excel very much like its counterparts do, but with increased tolerance to amp loads, voltage sustainability under load, and increased cell life with the inherent cooler operation of new chemistry. For consumers that use devices requiring extremely heavy amperage, but need a battery that supports those loads without having to swapped out so quickly, we introduce to the RUN XL 21700 series cell.
Hohm RUN XL can be used in various applications with a Battery Management System. These are rated by Indonesia Chemistry at 4007mAh capacity, with a CDR of 30.3A, an 80°C | 2.8V cut-off of 38.6A, and a pulse/peak rating of 44.2A. All ratings are subject to meet and/or exceed strict limitation policies set forth for DLr1, TID2, PVDL3, CLR4, mΩR5, and Temperature (°C). RUN XL is most closely related to the popular Hohm LIFE 18650 cell, but has chemistry melded at different Hz. Results are incredibly high amperage delivery, with an assurance of consistent coalition within the Li-ion family.
Every Hohm Tech cell model has been tested and certified by UN38.3, EN62133, IEC62133 2nd Edition, and UL1642 accredited laboratories and testing facilities assigned by regulatory bodies. This includes MSDS, CE, ROHS, UN38.3, IEC, Specifications, and Air/Sea Transport certifications. We do not cut corners. We deliver what we promise… chart topping performance, capacity, consistency, and safety.
All cells are developed and built specifically for intense & power-hungry devices that require consistent amperage delivery to operate as intended. Not only was power & capacity a priority, but safety measures were at the forefront of it all.
1 x Hohm Run XL 21700 Battery
Capacity: 4007mAh
Max Charge Rate: 6.01A
Max Charge Voltage: 4.2V
Continuous Discharge Rate: 30.3A
Max 80oC | 3.2V cut-off: 38.6A
Pulse | Peak6: 44.1A
Approximate Cycle Life Retention: 500 Cycles (72%), 1000 (62%)
Chemistry Type: QSP Li-NMC
To expound on safety:
• modified cathode tag consisting of higher purity aluminum (UHP Al) is utilized to aid in lowering internal resistance
• updated poly seal with refined bitumen is installed in every cell to ensure excess pressure is controlled
* NOTICE: Hohm Tech does not manufacture batteries. These are made for and licensed to Hohm Tech Int’l achieving their requirements set forth.
** CAN BE CHARGED AT 6.01A. This is not a misprint. 6.01A as in SIX POINT ZERO ONE amp charging is possible, tested, proven, and approved within all strict safety protocols set by Indonesia Chemistry.
*** TESTING BEYOND TEMPERATURE. Hohm Tech cells utilize both static & dynamic testing that includes but not limited to: density loss, thermal distribution, volt drop limiters, cycle life retention, and temperature. These tests are imperative to achieve true cell performance, longevity, and overall quality.
1 Density Loss
2 Thermal Image Distribution
3 No Single Pulse Volt Loss
4 Cycle Life Retention
5 Resistance Retentivity Pre|Post
6 Pulse & Peak is applicable to Dynamic EV Systems ONLY and rated @ ≤5 SEC ON / ≥30 SEC OFF
